Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Steel | Color: | Yellow Or Customized |
|---|---|---|---|
| Size: | 9meter Or Customized | Service: | OEM/ODM |
| HS Code: | 9603909090 | Application: | Cement Conveyor |
| Conveying Distance: | 0.9-520.5m ³/ H (m) | Power: | 25Kw Or Customized |
| Pitch: | 355mm | Diameter: | 2-25m |
| High Light: | Pipe Type Cement Screw Conveyor,Pipe Type Screw Conveying Equipment,Q235 Steel Cement Screw Conveyor |
||

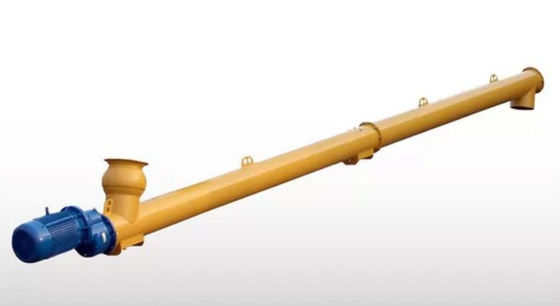

Cement Screw Conveyor Pipe Type Screw Conveying Equipment
The application
Application scope: Suitable for conveying powdery, granular, and small pieces of non abrasive and low abrasive materials, such as coal, cement, stones, sand, clay, ore, etc
Technical Parameters
| Model | 165 | 219 | 273 | 325 | 426 |
| Spiral diameter | 140 | 190 | 250 | 290 | 390 |
| Outer Pipe diameter | 165 | 219 | 273 | 325 | 426 |
| Permission angle (°) | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 |
| Max length(m) | 12 | 12 | 12 | 12 | 12 |
| Max capacity | 10 | 30 | 50 | 80 | 110 |
| Motor power(kw) | 2.2-15 | 2.2-22 | 3-22 | 5.5-22 | 5.5-22 |
| Outer pipe thickness (mm) | 3-8 | 3-8 | 3-8 | 4-8 | 4-8 |
| Screw thickness(mm) | 2-20 | 2-20 | 3-20 | 3-20 | 3-20 |
| Reducer speed ratio | 1:5 | 1:5 | 1:7 | 1:10 | 1:10 |
| Speed(Rpm) | 288 | 288 | 205 | 144 | 144 |
Packaging & Delivery
Packaging Details:Standard Export Carton Box, Wooden Box, Customerized
Port:Shanghai and Ningbo
Lead Time:About 20-25 days after payment
Why choose us?
1. We offer top quality products & best price & best service
2. All products made by advanced equipments imported from German
3. Fast delivery leadtime
4. We have skilled workers & technicians and strict quality assurance team
5. We are the professional brushes manufacturer and offer direct sales
6. Samples available and Customization as per request and OEM products allowed
7. We offer the lowest and more competitive price, as we make all procedure production by our own factory from material - semi - finish finally...
8. We are highly responsible to every customer of ours, and always try best to let them satisfied
FAQ
Q1. What is your terms of payment?
Generally,30% T/T in advance & 70% T/T upon shipment notice including copy of B/L
Q2. What is your terms of delivery?
Normaly, we accept EXW, FOB, CFR, CIF, LC at sight.
Q3. How about your delivery time?
Generally, it will take 20 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5:Can you offer the samples and how much cost for the samples?
Generally, Sample is free,and we ask the freight collected.
Q6. Can you accept OEM ?
Yes, OEM are welcome.
