Product Details:
Payment & Shipping Terms:
|
| Filament Material: | PP, Nylon, PE, PBT | Pipe Material: | Hard PP And Galvanized Iron Or PVC |
|---|---|---|---|
| Filament Color: | Gray, Blue, Yellow, Red, Customized | Product Size: | 2550*1500*2200mm |
| Service: | OEM/ODM | HS Code: | 9603509190 |
| Length Of Brush Roller: | 3600-4200mm | Diameter Of Brush Roller: | 700mm |
| Maximum Cleaning Height: | 4800mm | Minimum Cleaning Height: | 200mm |
| Rotational Speed Of Brush Roller: | 400-500 | ||
| High Light: | Vehicle solar plate cleaning machine,mobile solar panel washing machine,Vehicle solar panel washing machine |
||

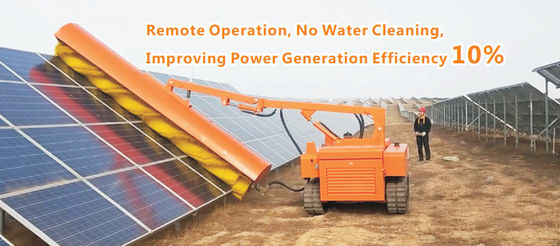

Cleaning Vehicle for Photovoltaic Power Station
Product Feature
Technical Parameters
| Item | Unit | Technical Parameters |
| Motor power | KW | 40 |
| Maximum torque | N.m | ≥152 |
| Transmission | Hydraulic | |
| Hydraulic work temperature | ℃ | 50-70 |
| Working pressure | MPa | 13-15 |
| Operating voltage | V | 12 |
| Battery capacity | Ah | 105 |
| Optimum speed of diesel engine | rpm | 1300~1600 |
| Diesel engine capacity | L | 100 |
| Oil consumption | L/h | 4.2 |
| Walking speed | Km/h | 2.5~3.5 |
| Working speed | Km/h | 1.5-2.5 |
| Climbing Capacity | ° | >45 |
| Day work efficiency | MWp | 3~5 |
| Maximum cleaning height | mm | 4800 |
| Minimum cleaning height | mm | 200 |
| Cleaning angle | ° | 0~80 |
| Cleaning-arm extension size | mm | 80~1300 |
| Cleaning-arm rotation angle | ° | 180 |
| Rotational speed of brush roller | rpm/min | 400~500 |
| Diameter of brush roller | mm | 700 |
| Length of brush roller | mm | 3600~4200 |
| Effective remote-controlled distance | m | 300 |
| Total weight | kg | 2500 |
| Product size | mm | 2550*1500*220 |
Packaging & Delivery
Packaging Details:Standard Export Carton Box, Wooden Box, Customerized
Port:Shanghai and Ningbo
Lead Time:About 20-25 days after payment
Why choose us?
1. We offer top quality products & best price & best service
2. All products made by advanced equipments imported from German
3. Fast delivery leadtime
4. We have skilled workers & technicians and strict quality assurance team
5. We are the professional brushes manufacturer and offer direct sales
6. Samples available and Customization as per request and OEM products allowed
7. We offer the lowest and more competitive price, as we make all procedure production by our own factory from material - semi - finish finally...
8. We are highly responsible to every customer of ours, and always try best to let them satisfied
