Solar Cleaning Machine A22 Solar Panel PV Solar Cleaning Machine

Product Details

Place of Origin: CHINA

Brand Name: UNIFORM

Certification: CE, UL, UR, SGS, GB/T, ISO9001, ROSH

Model Number: AUTC-A22

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: Negotiable

Packaging Details: Carton box, Wooden box, Customerized

Delivery Time: 20-25 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 25000PCS/Month

Get Best Price
Product Details
Highlight:

Panel Solar Cleaning Machine

,

PV Solar Cleaning Machine

,

A22 Solar Cleaning Machine

Filament Material:
PP, Nylon, PE, PBT
Pipe Material:
Hard PP And Galvanized Iron Or PVC
Filament Color:
Gray, Blue, Yellow, Red, Customized
Product Size:
3000*1700*1500mm
Service:
OEM/ODM
HS Code:
9603509190
Filament Material:
PP, Nylon, PE, PBT
Pipe Material:
Hard PP And Galvanized Iron Or PVC
Filament Color:
Gray, Blue, Yellow, Red, Customized
Product Size:
3000*1700*1500mm
Service:
OEM/ODM
HS Code:
9603509190
Product Description

Solar Cleaning Machine-A22 Solar Panel PV Solar Cleaning Machine





Product Feature

  • The main equipment consists of six major systems: track walking system, power system, hydraulic system, remote control system, cleaning support arm system, and cleaning roller brush.



    A single device can clean 3-5 MWp of ground photovoltaic power plants every day, which has the characteristics of low cost and high efficiency.

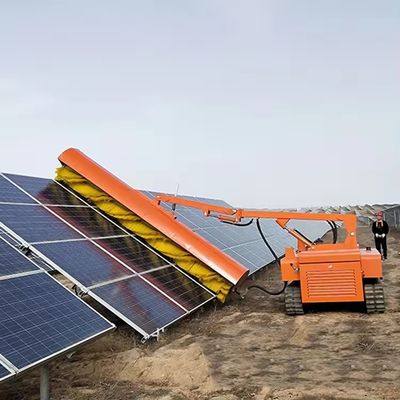

  • Solar Cleaning Machine A22 Solar Panel PV Solar Cleaning Machine 0

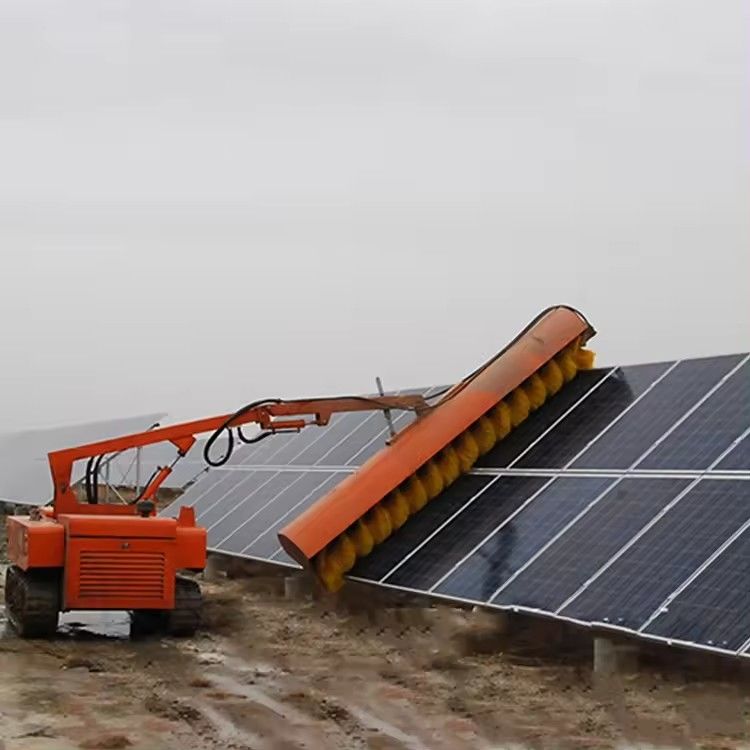

Solar Cleaning Machine A22 Solar Panel PV Solar Cleaning Machine 1


































































Technical Parameters



Item Unit Technical Parameters
Motor power KW 40
Maximum torque N.m ≥152
Transmission   Hydraulic
Hydraulic work temperature 50-70
Working pressure MPa 13-15
Operating voltage V 12
Battery capacity Ah 105
Optimum speed of diesel engine rpm 1300~1600
Diesel engine capacity L 100
Oil consumption L/h 4.2
Walking speed Km/h 2.5~3.5
Working speed Km/h 1.5-2.5
Climbing Capacity ° >45
Day work efficiency MWp 3~5
Maximum cleaning height mm 4800
Minimum cleaning height mm 200
Cleaning angle ° 0~80
Cleaning-arm extension size mm 80~1300
Cleaning-arm rotation angle ° 180
Rotational speed of brush roller rpm/min 400~500
Diameter of brush roller mm 700
Length of brush roller mm 3600~4200
Effective remote-controlled distance m 300
Total weight kg 2500
Product size mm 3000*1700*1500mm



Solar Cleaning Machine A22 Solar Panel PV Solar Cleaning Machine 2









Packaging & Delivery



Packaging Details:Standard Export Carton Box, Wooden Box, Customerized

Port:Shanghai and Ningbo

Lead Time:About 20-25 days after payment
